Views
The Web Studio shows a loaded map in up to three views, so you can ask different questions of the same code: how big and complex it is, what it is about, and how its parts depend on each other. The tabs in the middle of the top bar switch between them:
- Metric: the 3D code map, or one of the flat radial layouts, driven by the metrics you pick. See The code map.
- Domain: a word cloud of the vocabulary used in the code. See Domain view.
- Dependencies: a graph of the dependencies between files and folders, arranged by level. See Dependency view.
A tab appears only when the loaded map has data for it:
| Tab | Appears when the map was analysed with |
|---|---|
| Metric | always |
| Domain | the Domain Language parser |
| Dependencies | the Dependency parser |
ccsh analyse runs both parsers where they apply, so a map made with it usually has all
three tabs.
The mode bar

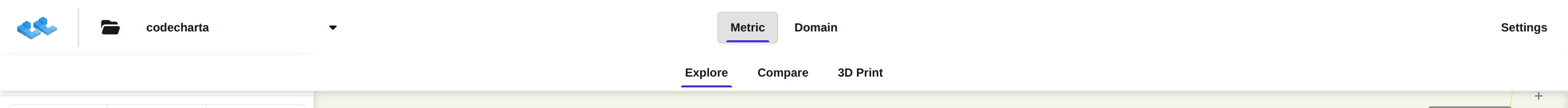

Section titled “The mode bar”Point at a view tab, or at the small handle below the tabs, and a bar with the modes of that view drops down over the map:

- Explore: the default mode of every view.
- Compare: Metric view only. Shows the difference between two maps. See Compare.
- 3D Print: Metric view only. Exports the map as a printable model. See 3D Print.
Picking a mode also opens its view, so you can go from the Domain view straight to Compare. Compare and 3D Print are not offered while the map layout is Sunburst or Radial TreeMap.
What the views share
Section titled “What the views share”- The loaded maps and the selection of maps in the top bar.
- The Explorer on the left. Each view keeps its own search, sort order, width and collapsed state.
- Focus. Focusing a folder in one view focuses it in the others. See Focus.
- Exclusions. A file excluded in the Metric or Dependencies view is gone from the other one too.
- Jumping with a node. The context menu of a file or folder offers Show in Metrics, Show in Domain and Show in Dependencies for the other available views, and opens that view with the same node selected.
A view that still has to be built shows a spinner while the top bar stays usable.
